Wire braided reinforced hoses for low-medium pressure lines and return lines.High tensile steel braid.

Application:  Medium pressure hydraulic application including mobile,machine tool and agricultural application,using petroleum or water-based hydraulic fluids.

Tube: Oil resistant synthetic rubber.

Reinforcement:  One high tensile steel wire braid.

Cover: Abrasion and weather resistant synthetic rubber.

Temp. Range:  -40°C to+100°C.

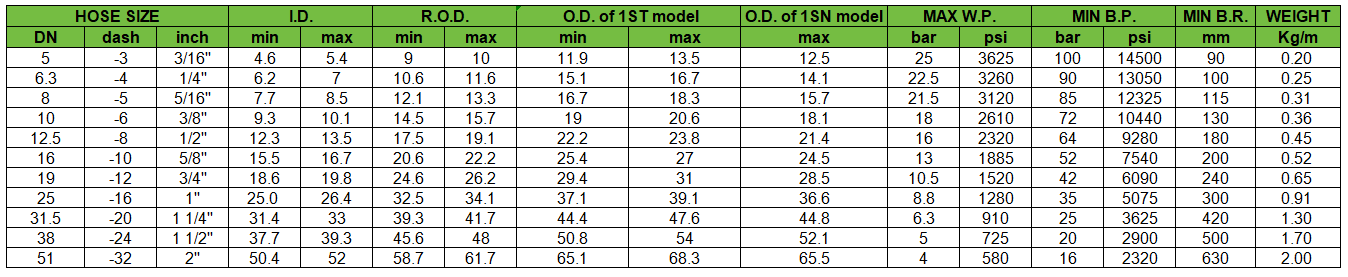

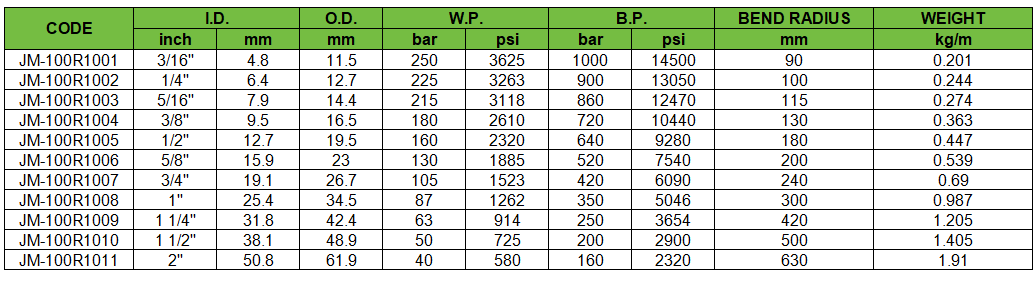

Hydraulic Rubber Hose SAE100 R1 Standard: SAE 100 R1 AT
